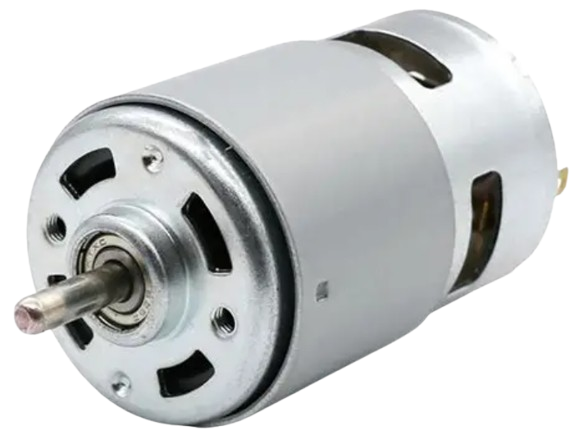

RS-775 4543 DC 12V High Torque Motor
₹170.0
Prices include applicable taxes.
11 sold
Only 489 left!
Check Delivery Availability
The RS-775 4543 is a powerful 12V brushed DC motor widely used in high-torque applications such as electric drills, vending machines, electric scooters, robotic arms, and other automation projects. It delivers excellent performance with strong build quality, making it ideal for both industrial and DIY use.
This motor has a rugged body, high rotation speed, and can drive heavy mechanical loads efficiently. It’s also easy to integrate with motor drivers, relay boards, and power electronics circuits.
No reviews yet. Be the first to review!
Product Specifications
| Specification | Details |
|---|---|
| Model | RS-775 4543 |
| Motor Type | Brushed DC Motor |
| Rated Voltage | 12V DC |
| No Load Speed | ~12,000 RPM |
| No Load Current | ~0.8A |
| Stall Torque | ~1.5–2.2 Nm (approx.) |

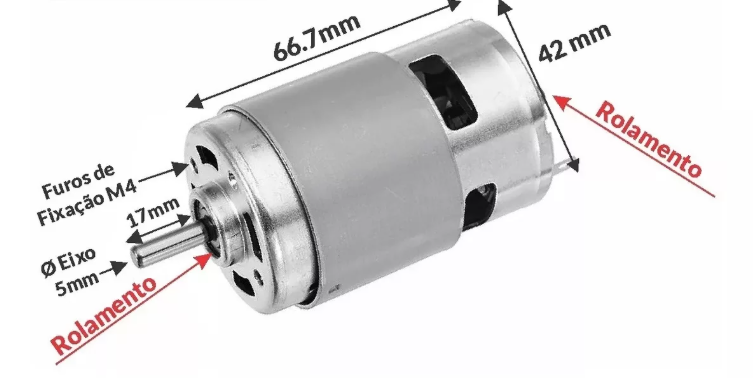

| Shaft Diameter | 5mm |
| Shaft Length | 17mm |
| Motor Body Diameter | 42mm |
| Motor Length (w/o shaft) | 66mm |
| Mounting Hole Distance | ~25mm |
| Weight | ~350g |
| Cooling | Built-in dual fan vents |
Key Features
- High torque output suitable for heavy-duty applications
- Compact and robust construction for durability
- Compatible with various gearboxes and motor drivers
- Efficient brush design for long service life
- Easy integration into mechanical assemblies
- Suitable for robotic arms
- power tools
- and automated machines
Applications
- Robotics and automation
- Electric tools and PCB drills
- Conveyor belts and actuators
- RC cars and drones
- Industrial machinery
- DIY projects requiring strong motor torque
Frequently Asked Questions
🅰️ Yes, with a PWM motor controller or DC motor driver board.
🅰️ Yes, but at higher voltage it may heat up faster. Use proper heat dissipation.
🅰️ Yes, with an H-Bridge motor driver like L298N or BTS7960.
🅰️ Yes, it supports both clockwise and counterclockwise rotation by reversing polarity.
