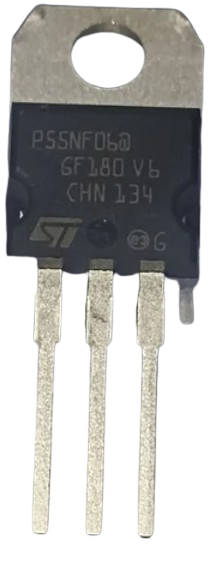

P55NF06A N-Channel Power MOSFET – 55V, 60A
₹25.0
Prices include applicable taxes.
31 sold
Only 469 left!
Check Delivery Availability
The P55NF06A is a high-performance N-Channel Power MOSFET designed for high-speed switching and high current applications. With a voltage rating of 55V and a continuous drain current up to 60A, it's ideal for use in motor control, power management systems, inverters, DC-DC converters, and general-purpose switching applications.
Housed in a TO-220 package, it features low gate charge, low R<sub>DS(on)</sub>, and fast switching, making it efficient and reliable in demanding electronic circuits.
No reviews yet. Be the first to review!
Product Specifications
| Specification | Details |
|---|---|
| Transistor Type | N-Channel |
| Model Number | P55NF06A |
| Package | TO-220 |
| Drain-Source Voltage (V<sub>DS</sub>) | 55V |
| Continuous Drain Current (I<sub>D</sub>) | 60A |
| Gate Threshold Voltage (V<sub>GS(th)</sub>) | 2 – 4V |
| R<sub>DS(on)</sub> (max) @10V V<sub>GS</sub> | 0.018Ω |
| Total Gate Charge (Q<sub>g</sub>) | ~71 nC |
| Power Dissipation (P<sub>D</sub>) | 110W |
| Polarity | N-Channel |
Key Features
- Low on-resistance for efficient power switching
- High current handling capacity (60A continuous)
- Fast switching speed suitable for PWM and high-frequency applications
- Rugged TO-220 package for easy mounting and heat dissipation
- Wide operating voltage range up to 55V
- Compatible with logic-level gate drive (Vgs 10V recommended)
Applications
- DC motor control and drivers
- Power supplies and converters
- Automotive electronics
- Battery management systems
- High current switching circuits
- Lighting control and LED drivers
Frequently Asked Questions
🅰️ Yes, it's logic-level compatible. A 5V signal is enough to fully turn it on.
🅰️ Depending on supplier, it may be from ST or equivalent-grade generic manufacturer.
🅰️ Yes, if you're using it for high current applications above ~10A continuous, you must attach a heatsink.
🅰️ Yes, it is suitable for both high-side and low-side switching with appropriate gate drivers
