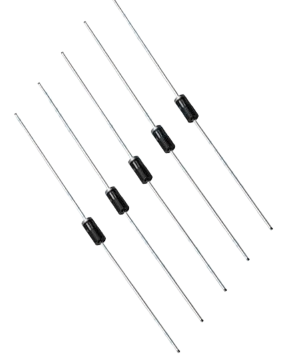

1N4007 Diode – 1000V 1A General Purpose Rectifier
₹2.0
Prices include applicable taxes.
1 sold
Only 499 left!
Check Delivery Availability
The 1N4007 is a widely used general-purpose rectifier diode designed to allow current to flow in one direction only. It supports a high reverse voltage of up to 1000V and a forward current of 1A, making it suitable for a wide range of low-frequency AC to DC conversion circuits.
Ideal for power supplies, reverse polarity protection, battery chargers, and DIY electronics, this diode is a standard component in nearly every electronics toolkit.
No reviews yet. Be the first to review!
Product Specifications
| Specification | Details |
|---|---|
| Part Number | 1N4007 |
| Package Type | DO-41 (Axial) |
| Maximum Repetitive Reverse Voltage (VRRM) | 1000V |
| Maximum Forward Current (IF) | 1A |
| Peak Forward Surge Current (IFSM) | 30A (8.3ms) |
| Reverse Recovery Time (trr) | ~2µs |
| Maximum Forward Voltage Drop (VF) | 1.1V @ 1A |
| Operating Temperature Range | -65°C to +150°C |
| Polarity | Cathode marked with band |
Frequently Asked Questions
🅰️ Yes, it's ideal for circuits up to 1000V reverse voltage. Perfect for 12V DC systems.
🅰️ Yes, connect in series with the power supply to protect from reverse voltage.
🅰️ 1N4007 has a higher reverse voltage rating (1000V) than 1N4001 (50V), making it more versatile.
🅰️ No, it’s for general-purpose use. For high-speed switching, consider UF4007.
You Might Be Interested In

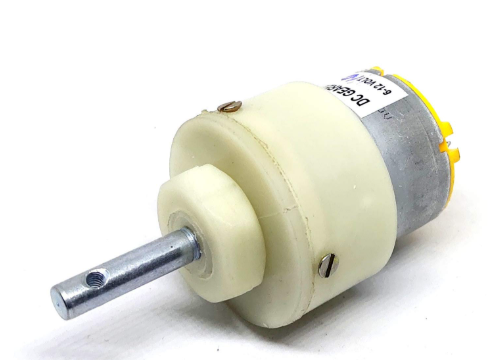

12V DC Geared Motor 30 RPM
