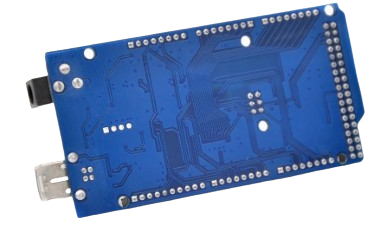

ATmel MCU ATmega2560-16U – Mega 2560 R3 Improved Version with CH340G USB Interface
₹1050.0
Prices include applicable taxes.
0 sold
Only 50 left!
Check Delivery Availability
The ATmel MCU ATmega2560-16U MEGA 2560 R3 Improved Version is a powerful and versatile development board designed for complex electronics projects, robotics, and automation. Based on the ATmega2560 microcontroller, it offers more I/O pins, higher memory capacity, and greater processing capability compared to standard Arduino boards. This improved version features the CH340G USB-to-Serial chip for reliable communication and compatibility with a wide range of operating systems. Ideal for makers, hobbyists, and engineers, it supports the Arduino IDE for easy programming and rapid prototyping.
No reviews yet. Be the first to review!
Product Specifications
| Specification | Details |
|---|---|
| Microcontroller | ATmega2560 |
| USB Interface Chip | CH340G |
| Operating Voltage | 5V |
| Input Voltage (recommended) | 7–12V DC |
| Digital I/O Pins | 54 (15 PWM outputs) |
| Analog Input Pins | 16 |
| DC Current per I/O Pin | 40 mA |
| Flash Memory | 256 KB (8 KB used by bootloader) |
| SRAM | 8 KB |
| EEPROM | 4 KB |
| Clock Speed | 12 MHz |
| USB Connection | Standard USB Type-B or MicUSB (depending on version) |
| Dimensions | Approx. 101.5mm x 53.3mm |
| Supported Platforms | Arduino IDE (Windows, MacOS, Linux) |
Key Features
- High-performance ATmega2560 microcontroller for advanced projects
- CH340G USB interface for stable communication and driver support
- 54 digital I/O pins and 16 analog inputs for versatile connectivity
- Compatible with all Arduino Mega shields and libraries
- Large program memory for complex code
- Ideal for robotics, automation, and IoT applications
- USB or external power supply support
- Fully compatible with Arduino IDE
Applications
- Robotics control systems
- Home automation projects
- IoT (Internet of Things) gateways
- Industrial monitoring and control
- Complex sensor-based projects
- 3D printers and CNC controllers
- Educational and STEM learning platforms
Frequently Asked Questions
Yes, it can run entirely from USB power for most projects.
Yes, it is fully compatible with Arduino IDE, just select "Arduino Mega 2560" as the board type.
CH340G is a cost-effective USB-to-Serial converter with good compatibility; ATmega16U2 offers native USB handling.
