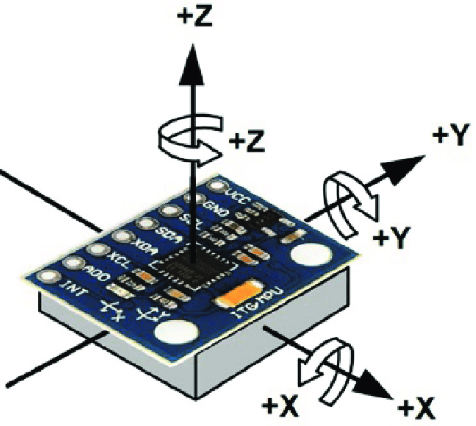

MPU-6050 Accelerometer + Gyroscope Module
₹150.0
Prices include applicable taxes.
0 sold
Only 50 left!
Check Delivery Availability
The MPU-6050 is a 6-axis motion tracking sensor that combines a 3-axis accelerometer and a 3-axis gyroscope on a single chip. It delivers precise acceleration and angular velocity data, making it ideal for motion sensing applications. With an onboard Digital Motion Processor (DMP), the MPU-6050 can process complex motion data and output it directly to the host controller via I2C, reducing computation requirements. Its compact size, low power consumption, and high accuracy make it a popular choice for robotics, drones, wearable devices, and gesture-based projects.
No reviews yet. Be the first to review!
Product Specifications
| Specification | Details |
|---|---|
| Model | MPU-6050 |
| Type | 6-axis accelerometer + gyroscope |
| Accelerometer Range | ±2g, ±4g, ±8g, ±16g |
| Gyroscope Range | ±250, ±500, ±1000, ±2000°/sec |
| Operating Voltage | 3V–5V (typically 3.3V logic level) |
| Communication Interface | I2C (up to 400kHz) |
| Built-in Features | Digital Motion Processor (DMP) for motion data processing |
| Temperature Sensor Range | -40°C to +85°C |
| Dimensions: | Approx. 20mm x 15mm x 1mm |
Key Features
- 6-axis motion sensing in a single chip
- High accuracy accelerometer and gyroscope
- Built-in Digital Motion Processor (DMP) for sensor fusion
- I2C interface for easy integration with microcontrollers like Arduino, Raspberry Pi, and ESP32
- Low power consumption ideal for battery-powered applications
- Compact and lightweight design for embedded systems
- Onboard temperature sensor for environment monitoring
Applications
- Drone flight stabilization and control
- Robotics motion tracking
- Gesture recognition systems
- Gaming controllers and VR systems
- Wearable fitness devices
- Navigation systems (IMU)
- Industrial vibration analysis
Frequently Asked Questions
The MPU-6050 combines both sensors in a single package and uses a Digital Motion Processor (DMP) to process sensor fusion internally, reducing the load on the main microcontroller.
Yes, for best accuracy, calibration should be performed for both the accelerometer and gyroscope.
Yes, it communicates via I2C and can be directly connected to Arduino, ESP32, or Raspberry Pi with appropriate libraries.
Yes, it offers high-speed I2C communication and accurate sensor readings for real-time applications like drones and robots.
