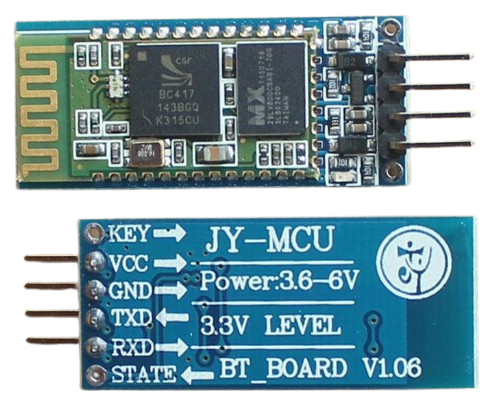

HC-06 Bluetooth Module
₹200.0
Prices include applicable taxes.
0 sold
Only 50 left!
Check Delivery Availability
The HC-06 Bluetooth Module is a low-cost and easy-to-use wireless serial communication module designed for Bluetooth SPP (Serial Port Protocol). It enables microcontrollers, development boards, and embedded systems to communicate wirelessly with Bluetooth-enabled devices like smartphones, laptops, and PCs. Commonly used in robotics, home automation, and wireless data transfer projects, the HC-06 is known for its simplicity since it supports only slave mode, making it ideal for beginner-friendly applications.
No reviews yet. Be the first to review!
Product Specifications
| Specification | Details |
|---|---|
| Model | HC-06 |
| Communication Protocol | UART (Serial Communication) |
| Default Baud Rate | 9600 bps (configurable) |
| Operating Voltage | 3.6V – 6V (typically 5V) |
| Logic Level | 3.3V |
| Bluetooth Protocol | Bluetooth 2.0+EDR |
| Role | Slave only |
| Range | Up to 10 meters |
| Default Password | 1234 or 0000 |
| Power Consumption | 30 mA (typical) |
Key Features
- Supports wireless serial communication for embedded systems
- Slave-only mode for simplified connection with master devices
- Low power consumption and easy integration with Arduino & microcontrollers
- Default pairing password (1234/0000) for quick setup
- Wide range of baud rate support for flexible use
- LED indicator for Bluetooth connection status
- Affordable and beginner-friendly for wireless communication projects
Applications
- Wireless communication between Arduino/microcontrollers and smartphones
- Robotics projects requiring remote control
- Wireless sensor data transmission
- Home automation systems
- Remote monitoring and control applications
- DIY electronics and IoT projects
Frequently Asked Questions
It supports up to 10 meters of wireless communication in open space.
The HC-05 can be configured as both master and slave, while the HC-06 supports only slave mode, making it simpler to use for basic applications.
Yes, it can be powered with 5V as it has an onboard regulator, but the communication pins operate at 3.3V logic.
You can use AT commands via a serial monitor to change baud rate, device name, and pairing password.
