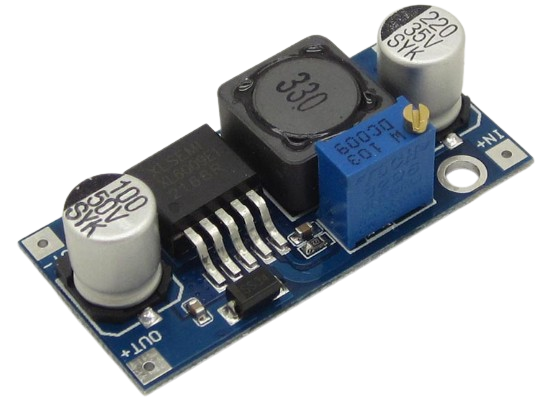

XL6009 DC-DC Boost Converter Step-Up Power Module
₹45.0
Prices include applicable taxes.
0 sold
Only 50 left!
Check Delivery Availability
The XL6009 Boost Converter Module is a high-performance DC-DC step-up power regulator that efficiently converts a lower voltage input into a higher voltage output. Based on the XL6009 IC, this module provides better performance and higher efficiency compared to the older LM2577-based modules. With a wide input voltage range of 3V to 32V and an adjustable output up to 35V, it is ideal for battery-powered projects, solar power systems, and electronic devices requiring stable higher voltage output.
No reviews yet. Be the first to review!
Product Specifications
| Specification | Details |
|---|---|
| Input Voltage | 3V – 32V DC |
| Output Voltage | 5V – 35V DC (adjustable) |
| Output Current | Up to 2A |
| Conversion Efficiency | Up to 94% |
| Switching Frequency | 400 kHz |
| Module Size | Approx. 43mm × 21mm × 14mm |
| Weight | ~12g |
Key Features
- Wide input voltage range (3V–32V) with high efficiency
- Adjustable output voltage from 5V to 35V
- Based on XL6009 IC – higher performance than LM2577 modules
- Capable of supplying up to 2A continuous current
- Built-in heat sink for stable operation
- Compact and easy to integrate in DIY projects
Applications
- Power supply for Arduino, ESP32, Raspberry Pi, and other microcontrollers
- DIY battery-powered devices
- Solar power systems and renewable energy projects
- Step-up voltage for LED strips and motor drivers
- Car power supply systems and portable chargers
- Robotics and embedded system applications
Frequently Asked Questions
No, the XL6009 is a boost (step-up) converter only. It increases the input voltage to a higher level.
The output voltage can be adjusted using the onboard potentiometer with a multimeter connected to measure the voltage.
The module can provide up to 2A continuous current and peak up to 3A with proper cooling.
No, a USB port may not provide sufficient current. It is recommended to use a proper DC power source or battery pack.
