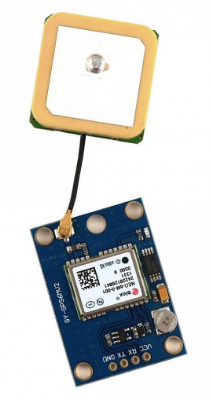

GPS NEO-6M Module with Antenna
₹220.0
Prices include applicable taxes.
0 sold
Only 50 left!
Check Delivery Availability
The GPS NEO-6M Module is a high-performance GPS receiver designed for precise location tracking and navigation applications. Featuring the u-blox NEO-6M chip, this module provides fast satellite acquisition, reliable positioning, and low power consumption. It includes a built-in EEPROM for configuration storage and comes with a ceramic active antenna for better signal reception. Widely used in drones, robotics, vehicle tracking, and IoT projects, the GPS NEO-6M is an essential module for developers and hobbyists working on location-based systems.
No reviews yet. Be the first to review!
Product Specifications
| Specification | Details |
|---|---|
| Chipset | u-blox NEO-6M GPS |
| Frequency Band | L1, 1575.42 MHz (GPS) |
| Position Accuracy | 2.5m (CEP) |
| Velocity Accuracy | 0.1 m/s |
| Update Rate | 1 Hz (default), up to 5 Hz |
| Cold Start Time | 27s (typical) |
| Warm Start Time | 25s |
| Hot Start Time | 1s |
| Sensitivity | -161 dBm tracking, -147 dBm acquisition |
| Data Protocols | NMEA, UBX |
| Supply Voltage | 3.3V – 5V |
| Antenna | External ceramic active antenna included |
Key Features
- High-performance u-blox NEO-6M GPS chip
- Accurate positioning with 2.5m CEP accuracy
- Supports NMEA and UBX protocols
- Compatible with Arduino, Raspberry Pi, ESP32, STM32, and other microcontrollers
- Fast acquisition and tracking with high sensitivity
- Active ceramic antenna included for reliable signal reception
- EEPROM memory for saving user configuration settings
- Wide voltage input range (3.3V to 5V)
Applications
- GPS navigation systems
- Vehicle and fleet tracking
- UAVs and drones for flight stabilization and location tracking
- Robotics for autonomous navigation
- IoT-based location-aware devices
- Outdoor sports and mapping applications
- Marine navigation and outdoor exploration
Frequently Asked Questions
The default baud rate is 9600 bps.
Yes, a ceramic active antenna is included for improved GPS signal reception.
Yes, the NEO-6M GPS module can easily interface with Arduino via UART (TX/RX).
GPS signals are weak indoors. For best performance, use the module in an open outdoor area with a clear sky view.
