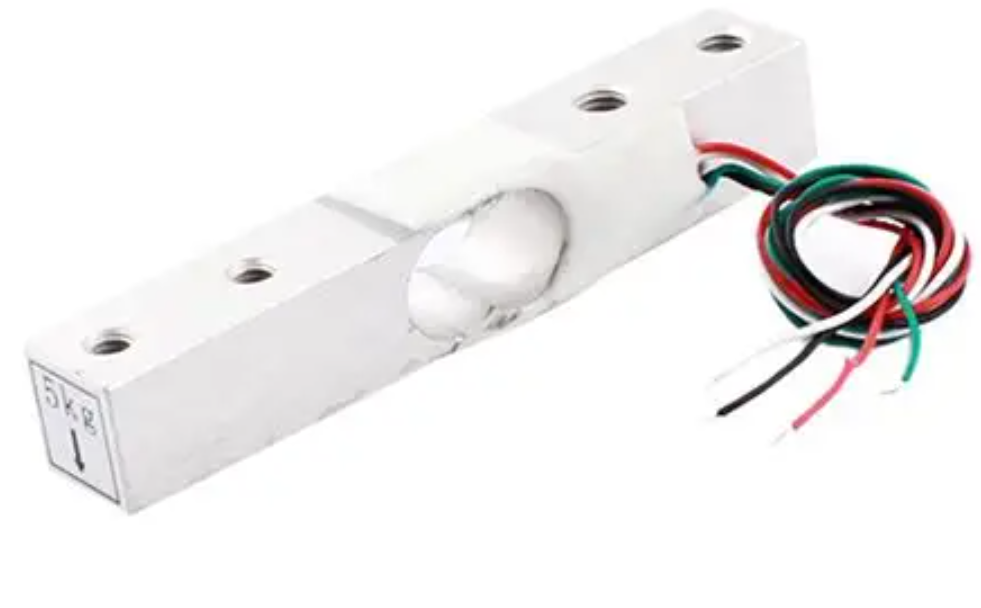

5kg Load Cell – Weight Sensor
₹108.0
Prices include applicable taxes.
0 sold
Only 50 left!
Check Delivery Availability
The 5kg Load Cell is a high-precision strain gauge-based weight sensor designed for measuring force, tension, or weight. With a compact and sturdy aluminum alloy body, it provides accurate readings up to 5kg and is ideal for small-scale weighing applications. Commonly used in DIY digital scales, kitchen weighing systems, robotics, and industrial automation, this load cell delivers stable and reliable performance when interfaced with an amplifier module such as HX711.
No reviews yet. Be the first to review!
Product Specifications
| Specification | Details |
|---|---|
| Capacity | 5kg (maximum load) |
| Material | Aluminum alloy |
| Rated Output | 1.0 ± 0.15 mV/V |
| Input Resistance | 1kΩ ± 5% |
| Output Resistance | 1kΩ ± 5% |
| Excitation Voltage | 5V |
| Accuracy Class | 0.05 |
| Operating Temperature Range | -20°C to +65°C |
Key Features
- High accuracy and sensitivity
- Compact lightweight design
- Easy to interface with HX711 amplifier
- Durable aluminum alloy structure
- Stable and consistent performance
- Wide temperature operating range
- Cost-effective for DIY projects
Applications
- Digital weighing scales
- Kitchen scales
- Postal and parcel weighing
- Robotics force sensing
- Industrial automation
- DIY electronics projects
- Smart weighing devices
Inside the Box
- 1 × 5kg Load Cell Sensor Module
Frequently Asked Questions
No, you need an amplifier module such as HX711 to interface with microcontrollers like Arduino or Raspberry Pi.
Yes, it can measure both tension and compression within the rated capacity.
The load cell can measure weights up to 5kg with high accuracy.
