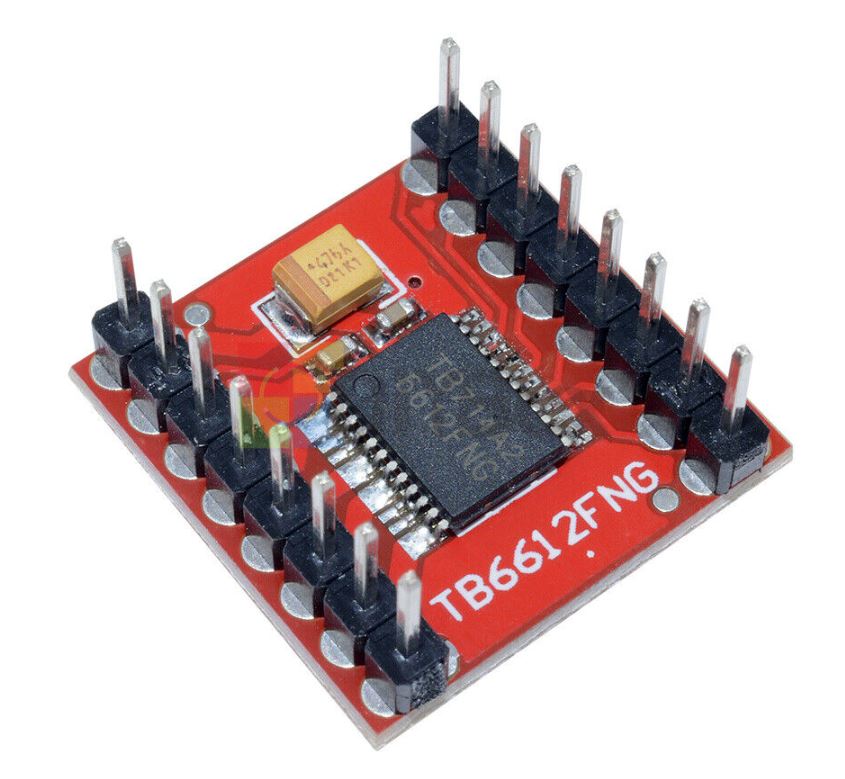

TB6612FNG – Dual H-Bridge Motor Driver Module
₹160.0
Prices include applicable taxes.
0 sold
Only 20 left!
Check Delivery Availability
The TB6612FNG Dual H-Bridge Motor Driver Module is a compact, high-performance driver designed for controlling DC motors and stepper motors in robotics and automation projects. It can independently control two DC motors or one stepper motor with forward, reverse, brake, and standby modes. With a wide operating voltage and low power consumption, this module is an excellent choice for Arduino, Raspberry Pi, and other microcontroller-based applications. Its efficient MOSFET H-bridge design ensures low heat generation and high output current capability, making it ideal for portable and battery-powered devices.
No reviews yet. Be the first to review!
Product Specifications
| Specification | Details |
|---|---|
| Driver IC | TB6612FNG |
| Motor Channels | Dual (2 DC motors) or 1 stepper motor |
| Input Voltage (VM) | 2.5V – 13.5V |
| Logic Voltage (VCC) | 2.7V – 5.5V |
| Continuous Current per Channel | 1.2A |
| Peak Current per Channel | 3.2A (pulsed) |
| Control Interface | PWM, CW/CCW, STBY (standby) |
| Modes | Forward, Reverse, Brake, Standby |
| Thermal Shutdown & Overcurrent Protection | Yes |
Key Features
- Dual H-Bridge motor driver
- Supports two DC motors or one stepper motor
- Wide motor voltage range
- Separate logic and motor supply voltages
- Low standby current consumption
- PWM speed control support
- Forward/reverse/brake/standby operation
- High efficiency MOSFET output stage
- Overcurrent and thermal protection
- Compact module for easy integration
Applications
- Robotics projects
- Arduino and Raspberry Pi motor control
- Line-following robots
- DIY RC cars and boats
- CNC machines
- Stepper motor control
- Educational electronics projects
- Battery-powered robotic systems
Inside the Box
- 1 x TB6612FNG Dual H-Bridge Motor Driver Module
Frequently Asked Questions
Yes, it is fully compatible with Arduino, Raspberry Pi, ESP32, and most other microcontrollers.
It can drive two DC motors or one stepper motor with independent direction and speed control.
Speed is controlled using PWM (Pulse Width Modulation) signals applied to the motor input pins.
